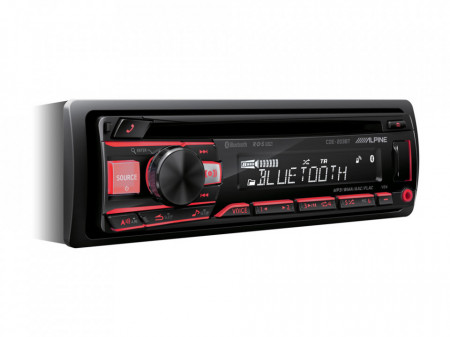

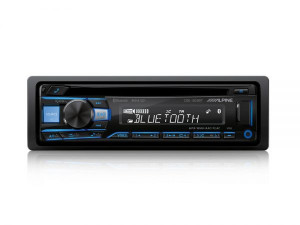

ALPINE CDE-203BT RADIO CD/USB/BLUETOOTH, MULTICOLOR
Description
ALPINE CDE-203BT RADIO CD/USB/BLUETOOTH, MULTICOLOR
RADIO CD/USB/BLUETOOTH, MULTICOLOR
- Iluminare butoane: multicolor
- Tip: CD Player
- Putere: 4 x 50W
- 2 Preamplificari
- Citeste fisiere Flac de pe USB
- Redare muzica de pe smartphone
- Dimensiune: 1DIN
- Fata detasabila
- Bluetooth incorporat
Caracteristici tehnice:
Tuner
- Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
- Memory: Auto Memory
RDS
- RDS Functions: AF, TA, TP, PTY, EON
- PTY (Programme Type) Display
BLUETOOTH®
- Built-in BLUETOOTH® Module
- Hands Free Calling: HFP (Hands Free Profile)
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
- Phone Book Search
- Voice Dial Operation
- Auto Answer
- Call Waiting
- Call History Display: Phone Book Call, Dialled Call, Received Call
- Speech Volume Level Adjustment
- Hands-Free Phone Sound Setting
- Firmware Updatable
- Microphone Included
Made for iPhone® / iPod®
- Connection: USB connection (KCU-445i Required)
- Made for iPod/iPhone
- M.I.X. (Shuffle) Play: Track
- Repeat: All, Track
- Battery Charging
Disc Player
- Disc Type: CD Player
- Disc Playback Type: CD, CD-R/RW
- Music Playback: CDDA, MP3, WMA Playback
- M.I.X. Random Play
- Repeat: Track, All
- Playback Control: Play/Pause/Forward/Backward
- CD Text Display
- CD Text Name Search
- Multi Bit DAC
- Zero data Mute
USB Media Connection
- Front USB Connection
- MP3, WMA, AAC, FLAC Playback
- Folder Up/Down
- M.I.X. Random Play
- Repeat: Track, Album, All
- USB AOA (Android Open Accessory) 2.0
Sound Tuning
- Subwoofer Level Adjustment
- BASS ENGINE SQ: Level Control 0-6
- Subwoofer Phase Select: 0°/180°
- Subwoofer System Select
- High Pass Filter
- Low Pass Filter
- 2V Voltage 2PreOuts
- 10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
- 3-band Parametric Equalizer
General
- Power Output: 4 x 50 W High Power Amplifier
- Display LCD: 14 Segments White LCD Display 1Line
- Control Type: Rotary Encoder Knob
- Variable RGB Illumination Buttons
- 2 PreOuts (2V, Front + Subwoofer)
- Multi Bit DAC
- Front AUX Input (3.5mm mini jack)
- Steering Wheel Remote Control Ready
- -20dB Mute
- Remote Control Ready
- Clock
- Detachable DIN Trim Plate
- Detachable Face Plate
- Dimmer
- Power Antenna Lead
- Remote Turn-On
Max Power Output Ratings
- Max Power Output: 4 x 50W
FM Tuner
- Tuning Range: 87.5 – 108.0 MHz
MW Tuner
- Tuning Range: 531 – 1,602 kHz
LW Tuner
- Tuning Range: 153 – 279 kHz
USB
- USB Requirements: USB 1.1/2.0
- Max. Power Consumption: 1,000 mA
- File System: FAT 16/32
Sound Tuning
- Subwoofer Level Adjustment: 0 to 15 dB
- Subwoofer Phase Setting: 0° or 180°
- High Pass Filter: Off, 80/100/120 Hz
- Low Pass Filter: Off, 80/100/120 Hz
- Bass Level Control Range: ±7 dB at 100Hz
- Bass Center Frequency: 60/80/100/120 Hz
- Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
- Treble Level Control Range: ±7 dB at 10 kHz
- Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
- Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
- Mid Level Control Range: ±7 dB
- Mid Center Frequency: 500/1k/1.5k/2.5k Hz
- Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
General
- Power Requirement: 12V.DC
- Pre Output Voltage (Before Clipping): 2V / 10k ohms
- Aux In: 1.4V / 10k ohms
- Maximum Mounting Angle: 30°
- Weight: 1.2 kg
Dimensions
- Din Size: 1 DIN
- Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
