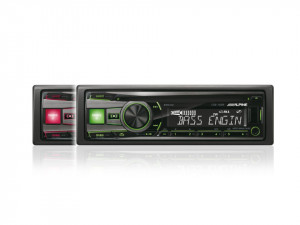

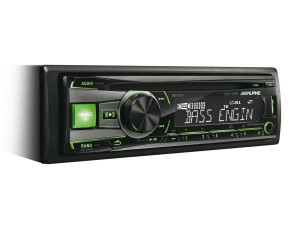

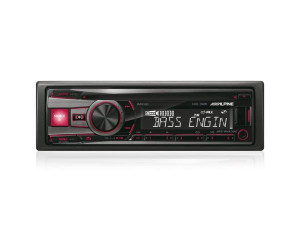

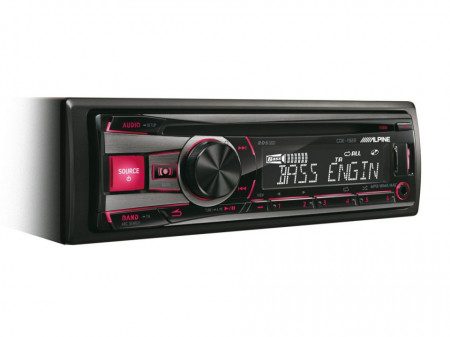

ALPINE CDE-192R RADIO CD/USB, CONTROL i-POD, ROSU/VERDE
Description
ALPINE CDE-192R RADIO CD/USB, CONTROL i-POD, ROSU/VERDE
RADIO CD/USB/CONTROL i-Pod
- 2 Culori selectabile: rosu/verde.
- CDE–192R ofera o conexiune USB de mare viteză pentru a vă bucura de funcțiile de pe iPod sau iPhone. Calitate superioară a sunetului și functionare ușoară!
- Butonul BASS de lângă butonul central va duce direct la funcția de reglare a nivelului de bass.
- Puteti conecta iPhone-ul prin USB și App Direct si va permite să ascultați sunetul din mai multe aplicații prin difuzoarele auto.
- CDE–192R oferă o funcție rapidă de încărcare la un maxim de 1000mA, pentru reîncărcare rapidă a bateriei telefonului.
Caracteristici tehnice:
Tuner
- Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
- Memory: Auto Memory
- Seek Mode: Local/DX Selection
RDS
- RDS Functions: AF, TA, TP, PTY, EON, Radio Text
Made for iPod® / iPhone®
- Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd Gen., iPod classic 160GB/120GB/80GB, iPhone 6S Plus and 6S, IPhone 6 Plus and 6, iPhone 5S, iPhone 5, iPhone 5C, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
- Connection: KCU-445i Required (for iPods / iPhones with 30-pin connector)
- Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook, Genius Mix
- Alphabet Search
- Percentage Search
- App Direct Mode
- Direct Up/Down: Playlist, Artist, Album, Genre Up/Down
- M.I.X. (Shuffle) Play: Songs, Albums
- Repeat
- Battery Charging
Disc Player
- Disc Type: CD Player
- Disc Playback Type: CD, CD-R/RW
- Music Playback: CDDA, MP3, WMA, AAC Playback
- M.I.X. Random Play: M.I.X. Mode
- Repeat
- Playback Control: Play/Pause/Forward/Backward
- CD Text Display: Disc/ Track display
- CD Text Name Search
- Percentage Search （MP3/AAC/WMA Only)
- Zero data Mute
- DAC: Multi Bit DAC
- Digital Servo
USB Media Connection
- USB Connection: Front USB Connection with 1000mA charging support and iPhone quick charging
- Music Playback: MP3, WMA, AAC Playback
- USB Class: Mass Storage Class
- File/Folder Name Search
- Percentage Search
- Folder Up/Down
- M.I.X. Random Play: Files in a folder, All
- Repeat
Sound Tuning
- BassEngine SQ
- Subwoofer Level Adjustment
- Subwoofer Phase Select
- Subwoofer System Select: Subwoofer Level Control Management
- Low Pass Filter
- Default Equalizer setup
- Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classic
- 3-band Parametric Equalizer
- Factory EQ: 10 types
- Tone control: Bass/Mid/Treble
- Loudness
- Source Tone Memory
- Power IC Management System
General
- Power Output: 4 x 50W High Power Amplifier
- Display LCD: 13 Segments White LCD Display 1Line
- Illumination: 2 illumination Colours Selectable (Green/Red)
- Control Type: Rotary Encoder Knob
- 3 PreOuts (2V, Front / Rear / Subwoofer)
- AUX-In: Front AUX Input (3.5mm mini jack)
- Steering Wheel Remote Control Ready
- Remote Control Ready
- Menu Language: English, German, French, Italian, Spanish, Dutch, Russian
- Detachable DIN Trim Plate
- Detachable Face Plate
- Dimmer
- Power Antenna Lead Output
- Remote Turn-On Output
- Face Color: Black
- Mute: -20dB Mute (Remote control only)
Max Power Output Ratings
- Max Power Output: 4 x 50W
FM Tuner
- Tuning Range: 87.5 – 108.0 MHz
- Mono Usable Sensitivity: 0.7 μV
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2 dB
MW Tuner
- Tuning Range: 531 – 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB
LW Tuner
- Tuning Range: 153 – 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB
Disc Player
- Frequency Response: 5 – 20k Hz (±1 dB)
- Total Harmonic Distortion (at 1kHz): 0.008 %
- Dynamic Range (at 1kHz): 95 dB
- Signal-to-Noise Ratio: 105 dB
- Channel Separation (at 1kHz): 85 dB
- Wow & Flutter (%WRMS): B.M.L.
USB
- USB Requirements: USB 1.1/2.0
- Max. Power Consumption: 1,000 mA
- USB Class: Mass Storage Class
- File System: FAT 12/16/32
- MP3 Decoding: MPEG-1/2 Audio Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: AAC-LC Format ′′.m4a′′ File
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 – 20k Hz (±1 dB) *May differ depending on the encoding software and bit rate.
- Total Harmonic Distortion (at 1kHz): 0.008 %
- Dynamic Range (at 1kHz): 95 dB
- Signal-to-Noise Ratio: 105 dB
- Channel Separation (at 1kHz): 85 dB
Sound Tuning
- Subwoofer Level Adjustment: 0 to 15
- Subwoofer Phase Setting: 0° or 180°
- Low Pass Filter: Off, 60/80/120/160 Hz
- Bass Level Control Range: -7 to +7 dB
- Bass Center Frequency: 60/80/100/120 Hz
- Bass Bandwidth Adjustment (Q): 4 Choices (0.5=wide, 1.0=medium, 1.5=medium, 2.0=narrow)
- Mid Level Control Range: -7 to +7 dB
- Mid Center Frequency: 500/1k/1.5k/2.5k Hz
- Mid Bandwidth Adjustment (Q): 4 Choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
- Treble Level Control Range: -7 to +7 dB
- Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
- Treble Bandwidth Adjustment (Q): 2 Choices (0.75=wide, 1.25=narrow)
- Loudness: 100 Hz 10 dB
- Bass Engine SQ: Level 0 – 6
- Application SVolume Level: -14 to +14dB
General
- Power Requirement: 14.4 V.DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 2V / 10k ohms
- Aux In: 1.4V / 10k ohms
- Maximum Mounting Angle: 35° from Horizontal
- Weight: 1.24 kg
Dimensions
- Din Size: 1 DIN
- Chassis Size (W x H x D) mm: 178 x 50 x 161,5 mm
- Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm
