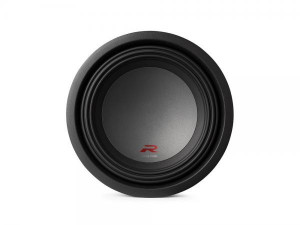

ALPINE R-W12D2 SUBWOOFER DE 30CM (12″), 2Ω + 2Ω, 2250W
Description
ALPINE R-W12D2 SUBWOOFER DE 30CM (12″), 2Ω + 2Ω, 2250W
Subwoofer de 12′′ (30 cm) – (2Ω + 2Ω), 750W RMS
( fara incinta )
- Alpine anunta introducerea noii linii de subwoofer din seria R, care este construită din platforma de tip R foarte apreciată. Cu design-ul selectat și îmbunătățirea constructiei, subwoofer-ul din seria R este capabil să transmită mai multă extensie de bas.
- Putere RMS: 750W
- Putere Peak: 2250W
- Impedanta nominala: (2Ω + 2Ω)
Caracteristici tehnice:
Diaphram
- Material: Oversized Hairline-Textured Mica Poly Dustcap w /
Kevlar Reinforced Pulp Paper Cone Body - Design: 2-Piece Parabolic
Surround
- Material: Injected Molded Santoprene®
- Design: High Amplitude Multi-Roll H.A.M.R Surround Design (Patent Pending)
Spider
- Material: Conex®
- Design: 10 Segment High-Roll Progressive Design
Voice Coil
- Material: 180ºC High Temp Wire on Sprial-Cut Aluminum Bobbin
- Design: 4-Layer Dual Voice Coil
Motor Structure
- Pole Geometry: FEA Optimized Design w/ Compound Radius Pole Geometry
- Configuration: Radial Vented VC Heat Sink and Airflow Management System (Patent #7,634,101)
Frame
- Material: Cast Aluminum
- Design: Perimeter Vented Heat Transfer (Patent Pending), Integrated Shorting Sleeve and Airflow Management System
Terminals
- Layout: One Sided
- Design: Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper
Tinsel Leads
- Design: Reinforced Layer Spider Integration (Patent #6,810,988)
Gasket
- Design: Concealed Mount Gasket System
SPECIFICATIONS
Power Handling
- RMS Power Handling: 750W
- Peak Power Handling: 2250W
Dimensions
- Mounting Depth: 162mm
- Mounting Diameter: 275mm
- Displacement: 0.10 cu. Ft.
- Added Volume: 0.09 cu. ft. (Reverse Mount, Magnet Out)
General
- Frequency Response: 24Hz – 200Hz
