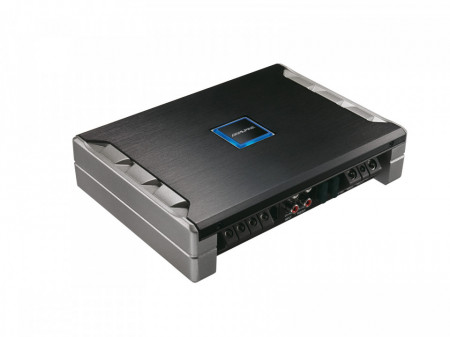

ALPINE PDR-M65 AMPLIFICATOR MONO, 1300W
Description
ALPINE PDR-M65 AMPLIFICATOR MONO, 1300W
AMPLIFICATOR AUTO MONO DE 1300W
- Amplificatoarele PDR-Power oferă cea mai bună performanță în clasa lor, redefinind așteptările în categoria amplificatoarelor compacte de putere înaltă.
- Seria PDR utilizează o mare parte din aceeași tehnologie digitală ca și seria PDX, obținând o eficiență ridicată cu performanțe audio excelente, inclusiv distorsiuni scăzute, factor de amortizare ridicat și raport semnal-zgomot ridicat
- Adăugați controller-ul RUX-KNOB (se vinde separat) și obțineți un control deplin din interiorul masinii, pentru reglajele basului de la distanță.
- Putere maxima totala: 1300 W
- Pe canal in 4 Ohmi: 1 x 450W
- Pe canal in 2 Ohmi: 1 x 650W
Caracteristici tehnice:
Install
- Angled Insert-Type Terminals
- Integrated Wire and Mounting Screw Terminals
- Terminal Layout: One-Sided
- Mounting Design: Clean-look installation
General
- Rotatable Illuminated Alpine Badge
- Top-Side Control Panel
- Amplifier Type: Class-D (Digital)
- Channel Design: 1 Channel (Mono)
- Thermal Control : Thermal management control
- Low-battery Protection
- Power Supply: Resonant Mode Power Supply
- Power Supply Design: DC-DC PWM Power Supply
- Board Circuitry: STAR Circuit
- Current Protection: Auto Over-Current Protection
- Power Indicator: Top Mounted Blue LED Power/Status Indicator (Power: Blue, Status: Blue/Red)
- RCA Output: Non-Fading Pre-Amp Output
- Crossover: Adjustable Low Pass, Subsonic Filter
- Pre-Amp Stage: Discrete
- Final Outputs: MOSFET
- Board Design: 6-Layer Glass Epoxy PC Board
- Gain Control: Adjustable
- Bass Control: Remote Bass Control (Sold Separately)
Max Power Output Ratings
- Total Max Power: 1300W
RMS Power Ratings
- Per channel into 4 Ohms: (@14.4V ≤1%THD+N) 450W x 1
- Per channel into 2 Ohms: (@14.4V ≤1%THD+N) 650W x 1
Sound Tuning
- Crossover: Variable LPF, 50-400Hz (-24dB / oct )
- Subsonic Filter: Variable, 8-40Hz (-24dB / oct )
Dimensions
- Heat Sink (WxHxD) mm: 228.5mm x 165mm x 50.8mm
General
- Power Requirements: 14.4V DC (11 – 16V)
- Input Sensitivity (RCA Input): 0.1 – 4.0V
- Input Impedance: >10k ohms
- Frequency Response (+0, -3dB: 1W into 4 ohms): 8Hz – 400Hz
- Frequency Response (+0, -1dB: 1W into 4 ohms): 10Hz – 300Hz
- THD+N (10W into 4 ohms): ≤0.02%
- THD+N (Rated Power into 4 ohms): ≤0.07%
- Damping Factor (10W into 4 ohms at 100Hz): >1300
- Signal to Noise (Rated Power into 4 ohms): >113dB
- Weight: 2.4 kg
