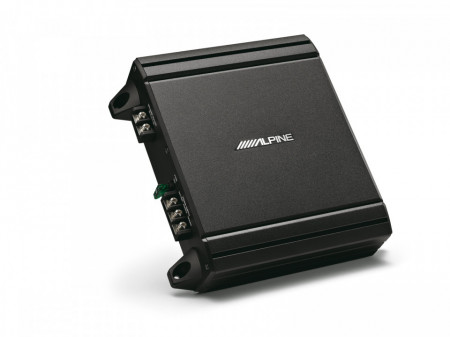

ALPINE MRV-M250 AMPLIFICATOR MONO, 550W
Descriere
ALPINE MRV-M250 AMPLIFICATOR MONO, 550W
AMPLIFICATOR AUTO MONO, 550W
- Amplificatoare V-Power, putere de calitate. Acum, la cea de-a patra generație!
- Adăugați controller-ul RUX-KNOB (se vinde separat) și obțineți un control deplin din interiorul masinii, pentru reglajele basului de la distanță.
- Putere mare, dimensiuni mici – Amplificatoarele V-Power sunt cunoscute pentru dimensiunile lor compacte, dar nu subestimează capacitatea lor de putere. Deși au o amprentă mai mică cu 40% față de predecesorii lor, produc aceleași cantități de energie ca și înainte. Obțineți puterea de care aveți nevoie, chiar dacă aveți spațiu de instalare limitat.
- Putere maxima totala: 550 W
- Pe canal in 4 Ohmi: 1 x 150W RMS
- Pe canal in 2 Ohmi: 1 x 250W RMS
Caracteristici tehnice:
Install
- Terminal Layout: Two-Sided
- Mounting Screw Terminals
General
- Amplifier Type: Class-D (Digital)
- Channel Design: 1 Channel (Mono)
- Power Supply Design: DC-DC PWM Power Supply
- Power Supply: MOSFET
- Pre-Amp Stage: Discrete
- Final Outputs: Power MOSFET
- Crossover: Variable Lowpass Filter
- Gain Control: Continuously Adjustable Gain Control
- Bass EQ: Bass EQ Function
- Bass Control: Remote Bass Control (RUX-KNOB) Ready
- Remote Turn On: Remote Sensing Function (for Speaker Level Input)
- Low-impedance Possibility:
- Current Protection: Over-Current, Over-Voltage, Under-Voltage and Thermal Protection
- Board Circuitry: S.T.A.R. Circuit
- Speaker-Level Inputs: 4-channel Speaker Level Inputs
- Power Indicator: LED Power Indicator
- Thermal Control: Multi-stage Power Limits
Max Power Output Ratings
- Total Max Power: 550 W
RMS Power Ratings
- Per channel into 4 Ohms: 150W RMS x 1 (14.4V at <1% THD+N)
- Per channel into 2 Ohms: 250W RMS x 1 (14.4V at <1% THD+N)
Sound Tuning
- Crossover Frequency (LPF): 50 – 400 Hz, -24dB/oct.
- EQ (Equalizer): 0 to +12dB, fc=50Hz
Dimensions
- Foot Print (WxHxD) mm: 190 x 55 x 200 mm
- Heat Sink (WxHxD) mm: 155 x 55 x 200 mm
General
- Power Requirements: 14.4 V.DC (11-16V allowable)
- Input Sensitivity (RCA Input): 0.15 – 4.0 V
- Input Sensitivity (Speaker Level Input): 0.4 – 10 V
- Input Impedance: >10k ohms
- Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 7 -400 Hz
- THD+N (10W into 4 Ohms): 0.02 %
- THD+N (10W into 2 Ohms): 0.03 %
- THD+N (Rated Power into 4 Ohms): 0.2 %
- THD+N (Rated Power into 2 Ohms): 0.3 %
- Damping Factor (10W into 4 Ohms at 100Hz): >500
- Signal to Noise (1W into 4 Ohms): >85 dB
- Signal to Noise (Rated Power into 4 Ohms): >105 dB
- Remote Level: -20 to 0 dB
- Weight: 1.5 kg
